USED for a week
We purchased it for the engineers to use, but they are stuck in their ways and prefer older methods.
Latest Software V1.3
Software suite available from the RigExpert website for Mac, Windows, IOS and Android.
Awesome plug and play, test antennas in the air via bluetooth

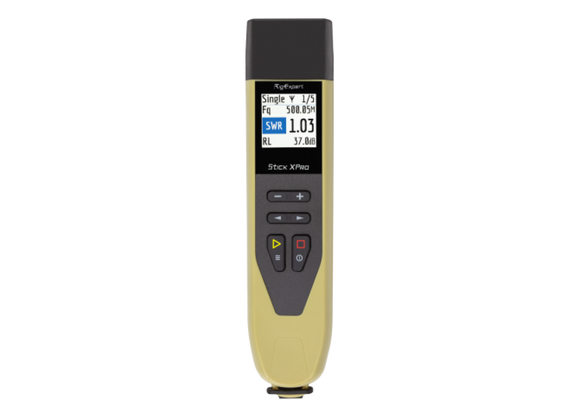

RigExpert Stick XPro (0.1 - 1150MHz) Analyser
Stick XPro is a vector analyzer that simply and accurately measures all the main parameters of various RF devices and systems in the frequency range from 0.1 MHz to 1150 MHz.
Key Features/Specifications:
- Frequency range: 0.1 ~ 1150 MHz
- Frequency input step: 1 kHz
- Measurements for 12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450 and 600Ω systems
- SWR measurement range: from 1 to 100 in digital mode, from 1 to 10 in graph modes
- Range R and X: 0… 2000, -2000… 2000
- Operating modes:Multé (quick check of multiband antennas), HAM (quick check of single band antenna) Single (measure SWR, |Z|, R, X, C, L, RL, Mag & Phase), TDR (distance to fault), SWR chart, Return Loss chart, RX Chart OSL calibration mode, Сable tools (StubTuner, Cable Length, Impedance, Loss measurements)
- HF output: Connector type: N-type. Output signal shape: square, from 0.1 to 1000 MHz. Output power: -10 dBm (at a load of 50 Ohms).
- Power: One Lithium-ion 18650 (included). Сharge time: 3 hours when using a charger. When the analyzer is connected to a PC or DC adapter with a USB connector, it receives power from these sources
- Interface: TFT display, 220х220 pixels resolution. 2 × 3 keys on the waterproof keyboard. English (by default) and Japanese menu and help screens. USB connection to a personal computer
- Bluetooth: ver. 4.2 BLE Single-mode, Class B, via USB 2.0 Type-C
- Dimensions: 185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches)
- Operating temperature: -20°- 55°C (-4°-131°F)
- Weight: 185 grams (6.5 Oz) with battery
Pictures used from the internet, we will update the photographs soon.
