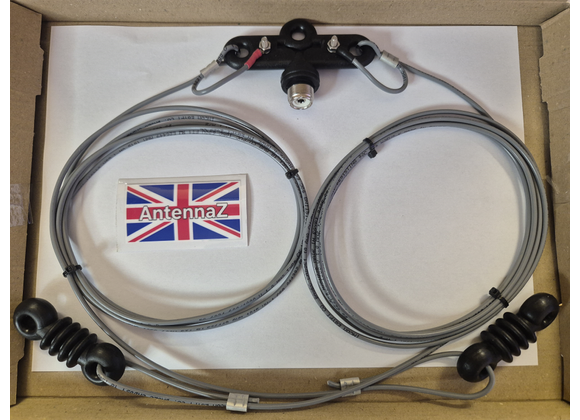

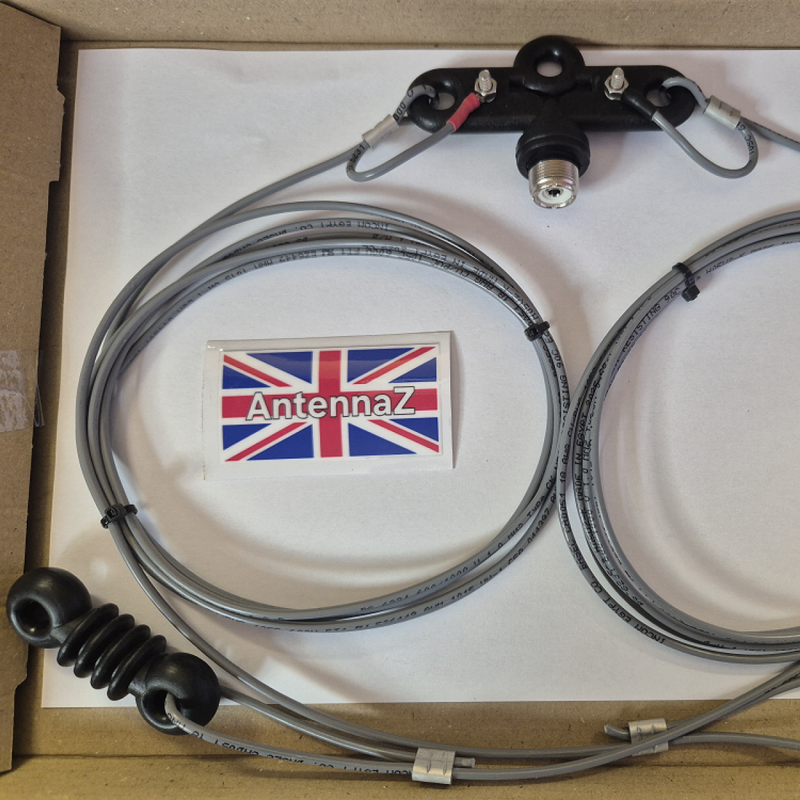

10m Amateur Band tri-rated 32/0.2mm annealed copper wire dipole.
Constructed from tri-rated 32/0.2mm annealed copper wire 3.1mm outer
The manufacturer of the dipole centers claims these are rated for 250 watts, however, these have been tested at 600 watts, and work fine.
The British standard Tri-Rated cable is sometimes referred to as panel wiring cable due to its application and purpose. It is a high temperature, flame retardant cable designed for use in instrumentation panels, motor starters or power switchgear. The cable features flexible plain annealed copper conductors and a circular high temperature PVC outer sheath. UL & CSA approved also to BS6231.
STANDARDS
- Flame propagation to BS EN 50265, IEC 60332-1
- BS6231
- UL 1015
- BS EN 50525-2-31
- BASEC approved cable
CONSTRUCTION
- Conductor: Flexible plain annealed copper conductors
- Sheath: Circular high temperature PVC outer sheath
CHARACTERISTICS
- Voltage Rating: 600/1000 volts
- Temperature Limits: -30°C
More information on the 10m amateur band by scanning the QR code below.
